GSE Universal Ground Mounting Kit System (18 panels – 10kW PV ARRAY)

GSE Portrait Ground – PORTRAIT LAYOUT (2 x 9 PORTRAIT)

GSE-GROUND-MOUNT

 GSE Datasheet

 GSE Manual

Minimum order – 4 must be purchased together with solar panels

Please note: The price varies greatly depending on layout so this item must be quoted for based on the number of panels & layout.

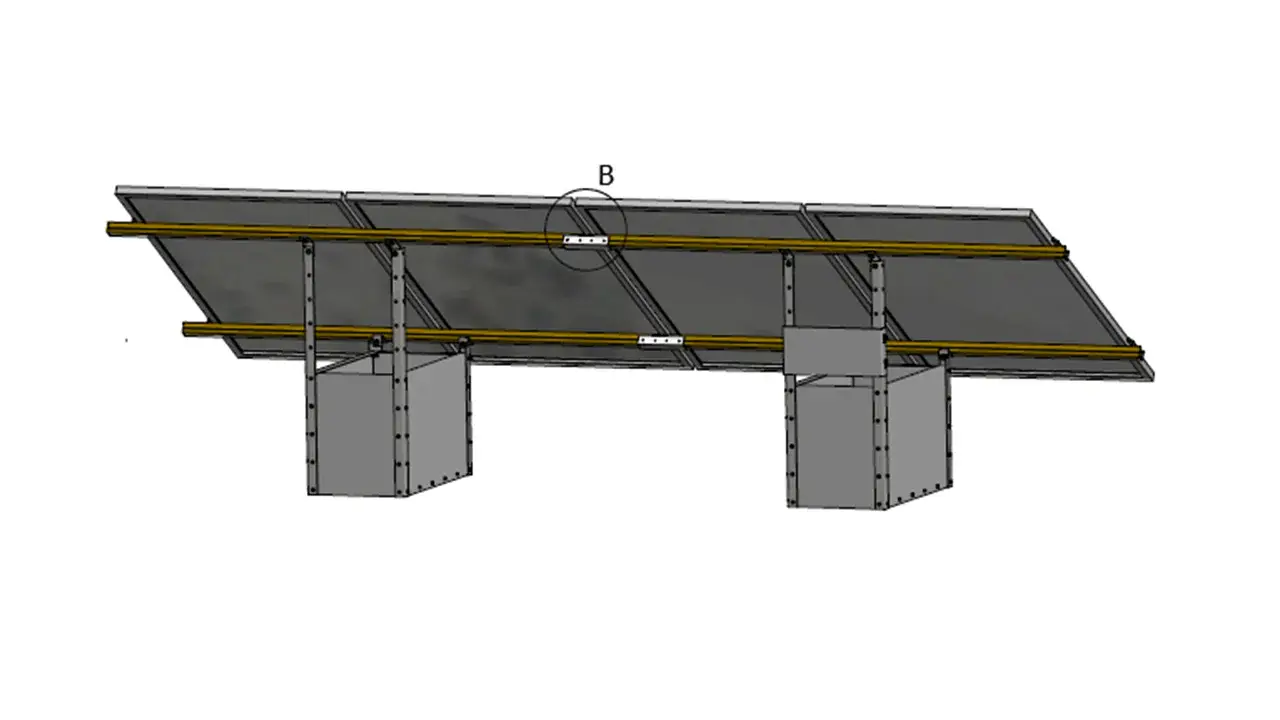

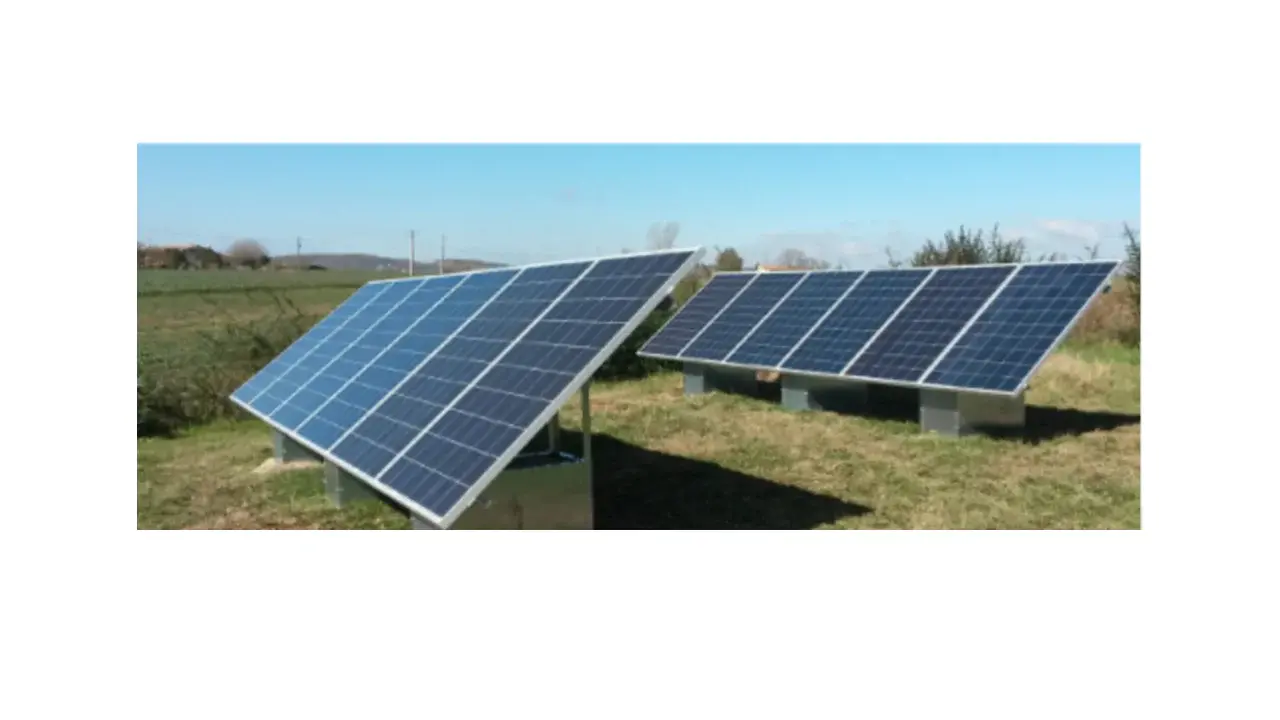

The GSE Ground mount system is a ballasted system, for portrait PV Modules. This system is adjustable between 7 and 40 degrees and required and box frame for every 2 portrait panels. This system has been paired with the Fastensol 3300mm H profile Rail F-R3300-H to maximise both value and simplicity.

This ground mount system is quick to install, cost effective and compatible with 95% of PV modules on the market.

Upon ordering we require the layout of the panels for the correct supply of components. Please note the frames fit 2 panels each, however this listing costs the components per panel for simplicity and requires ordering 1 unit per solar panel to be installed.

Mounting kit includes all required components for the mounting only and does not include ballasts:

• Fastensol 3300mm H profle Rail
• Fastensol Rail Bolt M10
• GSE Ground Mount Box Base – Bottom
• GSE Ground Mount Box Base – Front/Back
• GSE Ground Mount Box Base – Side
• GSE Ground Mount Box Base – Bottom Bracket
• GSE Ground Mount Box Base – Top Bracket
• GSE Ground Mount L corner Fixed
• GSE Ground Mount L corner Adjustable
• GSE Ground Mount M6 Screw & Washer
• GSE Ground Mount M6 Nut
• GSE Ground Mount M10 Nut
• GSE Ground Mount M10 Screw and Washer
• Fastensol H Rail Splice
• Fastensol Black End Clamp (30mm)
• Fastensol Black Mid Clamp (30mm)
